"Placing or exchange"
Konfiguration der Ausrichtung/en
1. Menü und
Symbolleiste
2.
Konfiguration der Koordinatensysteme
2.1.
Farbe und Größe
3.
Konfiguration der Koordinatensysteme und Feedbacks
3.1.
Allgemeine Konfiguration
3.2.
Bibliothek Definition
1. Menü und
Symbolleiste
 Menü
Symbolleiste
 Dialog
Koordinatensysteme
 Dialog

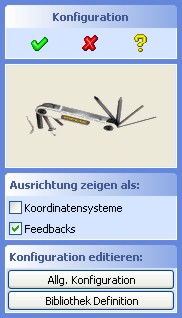

Feedbacks
2.

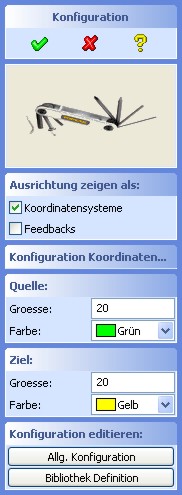

Konfiguration der Koordinatensysteme
2.1.
Farbe und Größe
Quelle
Ziel
3.
Konfiguration der Koordinatensysteme und Feedbacks

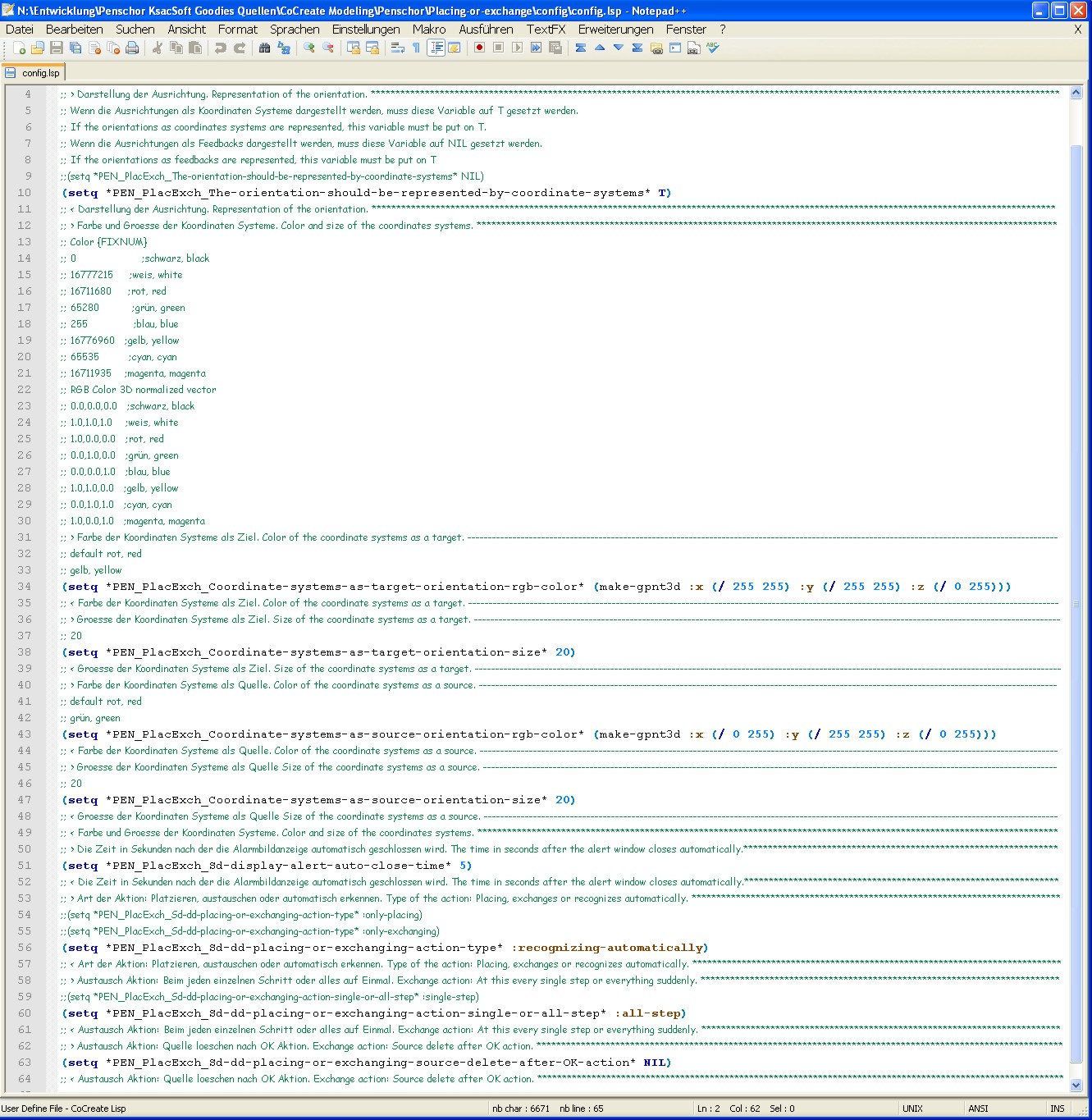

3.1.
Allgemeine Konfiguration
Hier können die
folgende Standardwerte angepasst werden:
- Darstellung der
Ausrichtung: Koordinatensysteme oder Feedbacks
- Farbe und Größe der
Koordinaten Systeme
- Die Zeit in Sekunden
nach der die Alarmbildanzeige automatisch geschlossen wird
;; > Darstellung der
Ausrichtung. Representation of the
orientation.************************************************************************************
;; Wenn die Ausrichtungen als Koordinaten Systeme dargestellt werden,
muss diese Variable auf T gesetzt werden.
;; If the orientations as coordinates systems are represented, this
variable must be put on T.
;; Wenn die Ausrichtungen als Feedbacks dargestellt werden, muss diese
Variable auf NIL gesetzt werden.
;; If the orientations as feedbacks are represented, this variable must
be put on T
;;(setq *PEN_PlacExch_The-orientation-should-be-represented-by-coordinate-systems*
NIL)
(setq *PEN_PlacExch_The-orientation-should-be-represented-by-coordinate-systems*
T)
;; < Darstellung der Ausrichtung. Representation of the orientation.
***********************************************************************************
;; > Farbe und Groesse der Koordinaten Systeme. Color and size of the
coordinates systems.
*************************************************************
;; Color {FIXNUM}
;; 0 ;schwarz, black
;; 16777215 ;weis, white
;; 16711680 ;rot, red
;; 65280 ;grün, green
;; 255 ;blau, blue
;; 16776960 ;gelb, yellow
;; 65535 ;cyan, cyan
;; 16711935 ;magenta, magenta
;; RGB Color 3D normalized vector
;; 0.0,0.0,0.0 ;schwarz, black
;; 1.0,1.0,1.0 ;weis, white
;; 1.0,0.0,0.0 ;rot, red
;; 0.0,1.0,0.0 ;grün, green
;; 0.0,0.0,1.0 ;blau, blue
;; 1.0,1.0,0.0 ;gelb, yellow
;; 0.0,1.0,1.0 ;cyan, cyan
;; 1.0,0.0,1.0 ;magenta, magenta
;; > Farbe der Koordinaten Systeme als Ziel. Color of the coordinate
systems as a target.
--------------------------------------------------------------
;; default rot, red
;; gelb, yellow
(setq *PEN_PlacExch_Coordinate-systems-as-target-orientation-rgb-color*
(make-gpnt3d :x (/ 255 255) :y (/ 255 255) :z (/ 0 255)))
;; < Farbe der Koordinaten Systeme als Ziel. Color of the coordinate
systems as a target.
--------------------------------------------------------------
;; > Groesse der Koordinaten Systeme als Ziel. Size of the coordinate
systems as a target.
-------------------------------------------------------------
;; 20
(setq *PEN_PlacExch_Coordinate-systems-as-target-orientation-size* 20)
;; < Groesse der Koordinaten Systeme als Ziel. Size of the coordinate
systems as a target.
-------------------------------------------------------------
;; > Farbe der Koordinaten Systeme als Quelle. Color of the coordinate
systems as a source.
------------------------------------------------------------
;; default rot, red
;; grün, green
(setq *PEN_PlacExch_Coordinate-systems-as-source-orientation-rgb-color*
(make-gpnt3d :x (/ 0 255) :y (/ 255 255) :z (/ 0 255)))
;; < Farbe der Koordinaten Systeme als Quelle. Color of the coordinate
systems as a source.
------------------------------------------------------------
;; > Groesse der Koordinaten Systeme als Quelle Size of the coordinate
systems as a source.
------------------------------------------------------------
;; 20
(setq *PEN_PlacExch_Coordinate-systems-as-source-orientation-size* 20)
;; < Groesse der Koordinaten Systeme als Quelle Size of the coordinate
systems as a source.
------------------------------------------------------------
;; < Farbe und Groesse der Koordinaten Systeme. Color and size of the
coordinates systems.
*************************************************************
;; > Die Zeit in Sekunden nach der die Alarmbildanzeige automatisch
geschlossen wird. The time in seconds after the alert window closes
automatically.**
(setq *PEN_PlacExch_Sd-display-alert-auto-close-time* 5)
;; < Die Zeit in Sekunden nach der die Alarmbildanzeige automatisch
geschlossen wird. The time in seconds after the alert window closes
automatically.**
;; > Art der Aktion:
Platzieren, austauschen oder automatisch erkennen. Type of the action:
Placing, exchanges or recognizes automatically. ************
;;(setq *PEN_PlacExch_Sd-dd-placing-or-exchanging-action-type* :only-placing)
;;(setq *PEN_PlacExch_Sd-dd-placing-or-exchanging-action-type* :only-exchanging)
(setq *PEN_PlacExch_Sd-dd-placing-or-exchanging-action-type* :recognizing-automatically)
;; < Art der Aktion: Platzieren, austauschen oder automatisch erkennen.
Type of the action: Placing, exchanges or recognizes automatically.
************
;; > Austausch Aktion: Beim jeden einzelnen Schritt oder alles auf
Einmal. Exchange action: At this every single step or everything
suddenly. **********
;;(setq *PEN_PlacExch_Sd-dd-placing-or-exchanging-action-single-or-all-step*
:single-step)
(setq *PEN_PlacExch_Sd-dd-placing-or-exchanging-action-single-or-all-step*
:all-step)
;; < Austausch Aktion: Beim jeden einzelnen Schritt oder alles auf
Einmal. Exchange action: At this every single step or everything
suddenly. **********
;; > Austausch Aktion: Quelle loeschen nach OK Aktion. Exchange action:
Source delete after OK action.
*************************************************
(setq *PEN_PlacExch_Sd-dd-placing-or-exchanging-source-delete-after-OK-action*
NIL)
;; < Austausch Aktion: Quelle loeschen nach OK Aktion. Exchange action:
Source delete after OK action.
*************************************************

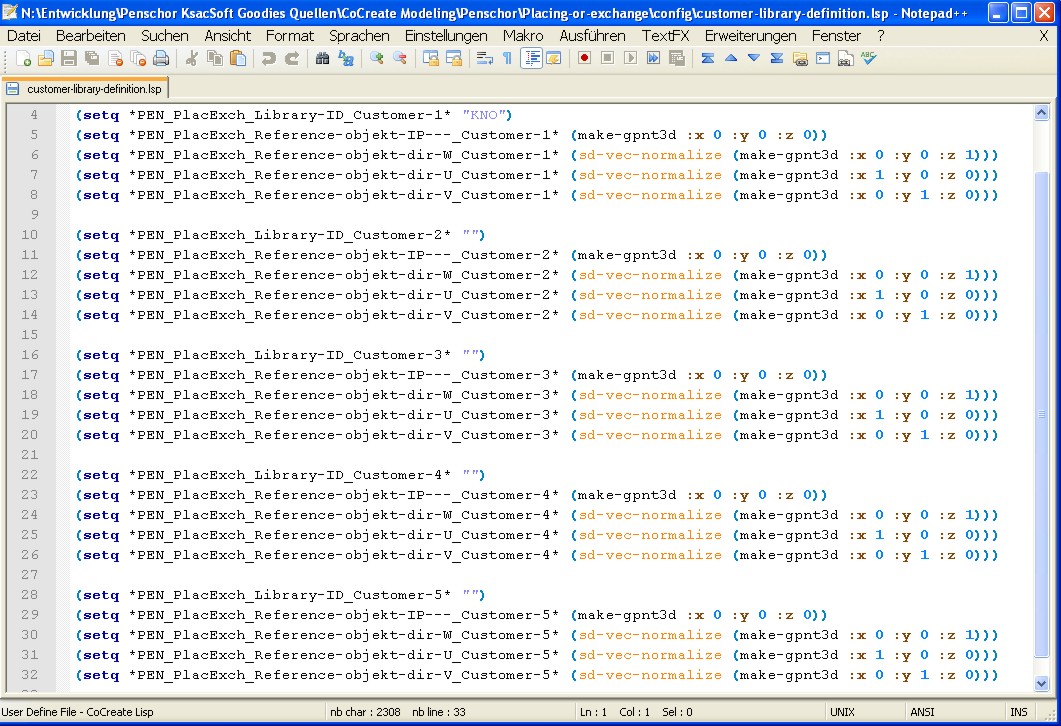

3.2.
Bibliothek Definition
Hier können
kundeneigene Bibliotheken definiert werden:
- Bibliothek
Bezeichnung: Library ID
- Einfügepunkt
(Einbaupunkt)
- Die Ausrichtung im
Raum: Richtungen W, U, V
(setq
*PEN_PlacExch_Library-ID_Customer-1* "KNO")
(setq *PEN_PlacExch_Reference-objekt-IP---_Customer-1* (make-gpnt3d :x 0
:y 0 :z 0))
(setq *PEN_PlacExch_Reference-objekt-dir-W_Customer-1* (sd-vec-normalize
(make-gpnt3d :x 0 :y 0 :z 1)))
(setq *PEN_PlacExch_Reference-objekt-dir-U_Customer-1* (sd-vec-normalize
(make-gpnt3d :x 1 :y 0 :z 0)))
(setq *PEN_PlacExch_Reference-objekt-dir-V_Customer-1* (sd-vec-normalize
(make-gpnt3d :x 0 :y 1 :z 0)))
(setq *PEN_PlacExch_Library-ID_Customer-2* "")
(setq *PEN_PlacExch_Reference-objekt-IP---_Customer-2* (make-gpnt3d :x 0
:y 0 :z 0))
(setq *PEN_PlacExch_Reference-objekt-dir-W_Customer-2* (sd-vec-normalize
(make-gpnt3d :x 0 :y 0 :z 1)))
(setq *PEN_PlacExch_Reference-objekt-dir-U_Customer-2* (sd-vec-normalize
(make-gpnt3d :x 1 :y 0 :z 0)))
(setq *PEN_PlacExch_Reference-objekt-dir-V_Customer-2* (sd-vec-normalize
(make-gpnt3d :x 0 :y 1 :z 0)))
(setq *PEN_PlacExch_Library-ID_Customer-3* "")
(setq *PEN_PlacExch_Reference-objekt-IP---_Customer-3* (make-gpnt3d :x 0
:y 0 :z 0))
(setq *PEN_PlacExch_Reference-objekt-dir-W_Customer-3* (sd-vec-normalize
(make-gpnt3d :x 0 :y 0 :z 1)))
(setq *PEN_PlacExch_Reference-objekt-dir-U_Customer-3* (sd-vec-normalize
(make-gpnt3d :x 1 :y 0 :z 0)))
(setq *PEN_PlacExch_Reference-objekt-dir-V_Customer-3* (sd-vec-normalize
(make-gpnt3d :x 0 :y 1 :z 0)))
(setq *PEN_PlacExch_Library-ID_Customer-4* "")
(setq *PEN_PlacExch_Reference-objekt-IP---_Customer-4* (make-gpnt3d :x 0
:y 0 :z 0))
(setq *PEN_PlacExch_Reference-objekt-dir-W_Customer-4* (sd-vec-normalize
(make-gpnt3d :x 0 :y 0 :z 1)))
(setq *PEN_PlacExch_Reference-objekt-dir-U_Customer-4* (sd-vec-normalize
(make-gpnt3d :x 1 :y 0 :z 0)))
(setq *PEN_PlacExch_Reference-objekt-dir-V_Customer-4* (sd-vec-normalize
(make-gpnt3d :x 0 :y 1 :z 0)))
(setq *PEN_PlacExch_Library-ID_Customer-5* "")
(setq *PEN_PlacExch_Reference-objekt-IP---_Customer-5* (make-gpnt3d :x 0
:y 0 :z 0))
(setq *PEN_PlacExch_Reference-objekt-dir-W_Customer-5* (sd-vec-normalize
(make-gpnt3d :x 0 :y 0 :z 1)))
(setq *PEN_PlacExch_Reference-objekt-dir-U_Customer-5* (sd-vec-normalize
(make-gpnt3d :x 1 :y 0 :z 0)))
(setq *PEN_PlacExch_Reference-objekt-dir-V_Customer-5* (sd-vec-normalize
(make-gpnt3d :x 0 :y 1 :z 0)))
|
